JYC BATTERY MANUFACTURER CO.,LTD.

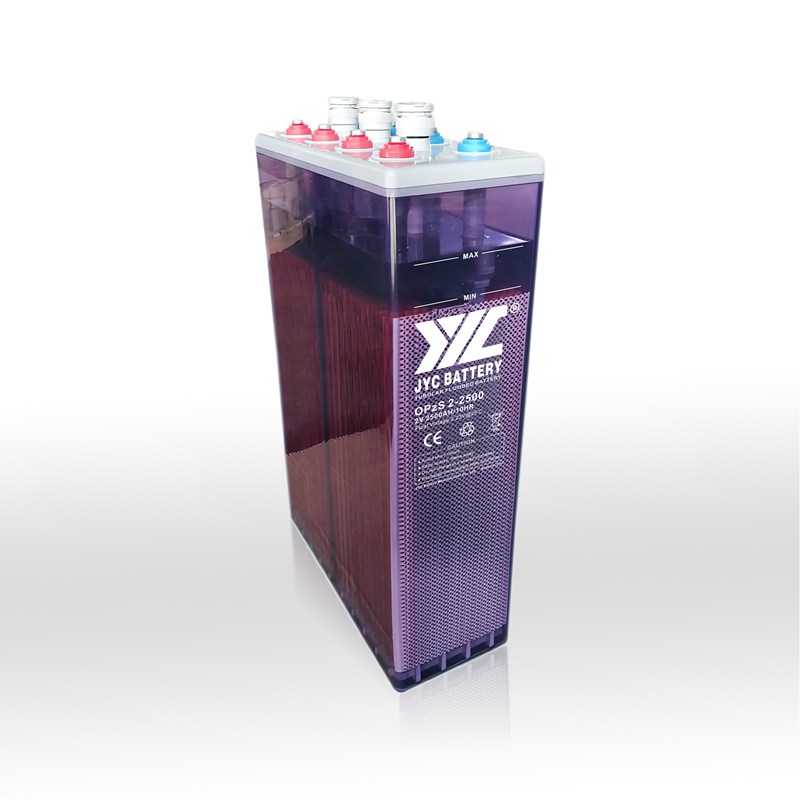

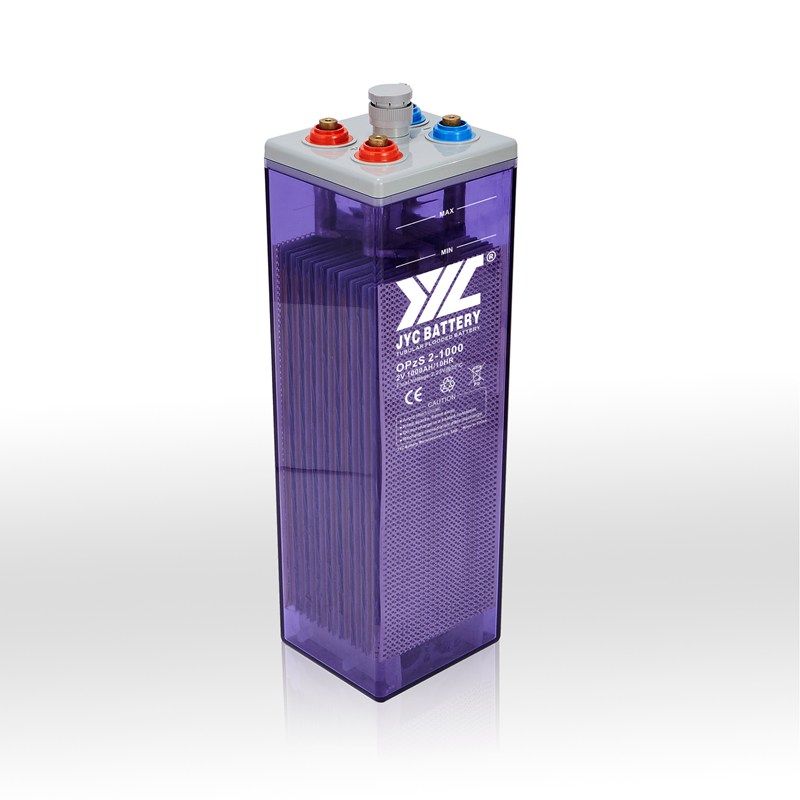

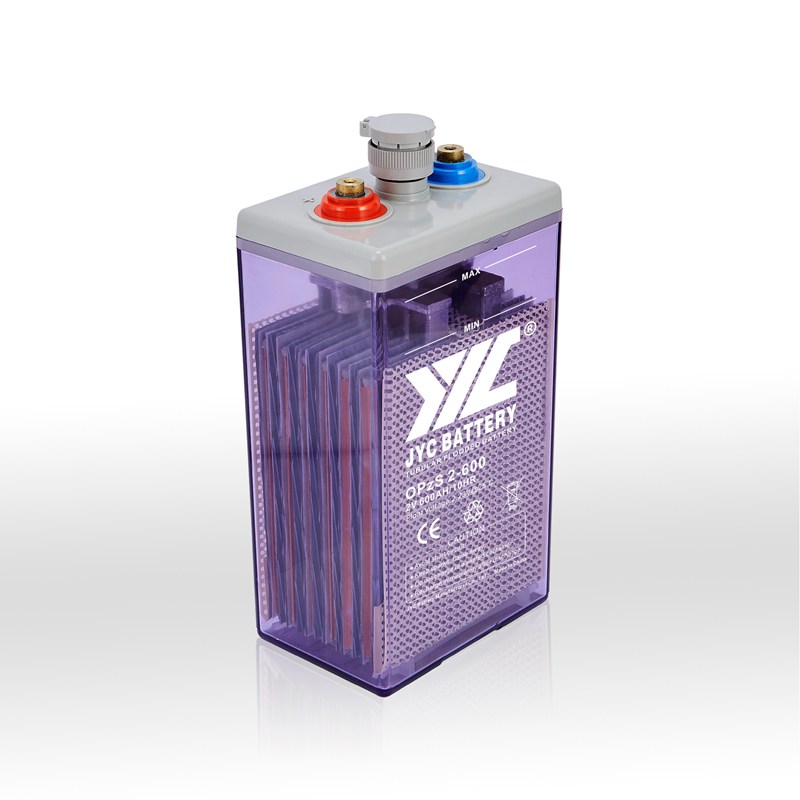

OPzS Series

JYC OPzS battery is a traditional tubular plates flooded stationary battery, with low maintenance, acid-proof and explosion-proof, its performance meets or exceeds the standards specified in DIN40736. This battery is most suitable for all standby power applications that require the highest level of reliability and EXTREME environment applications.

Send Inquiry


ModelNominal VoltageRated CapacityLengthWidthHeightTHTerminalType
(V)(AH,10HR)mminmminmminmmin
OPzS200-22V2002068.11 1034.06 35513.98 41016.14 T5
OPzS250-22V2502068.11 1244.88 35513.98 41016.14 T5
OPzS300-22V3002068.11 1455.71 35513.98 41016.14 T5
OPzS350-22V3502068.11 1244.88 47018.50 52520.67 T5
OPzS420-22V4202068.11 1455.71 47018.50 52520.67 T5
OPzS490-22V4902068.11 1666.54 47018.50 52520.67 T5
OPzS600-22V6002068.11 1455.71 64525.39 70027.56 T5
OPzS700-22V70025410.00 2108.27 47018.50 52520.67 T5
OPzS800-22V8002108.27 1917.52 64525.39 70027.56 T5
OPzS1000-22V10002339.17 2108.27 64525.39 70027.56 T5
OPzS1200-22V120027510.83 2108.27 64525.39 70027.56 T5
OPzS1500-22V150027510.83 2108.27 79631.34 85133.50 T5
OPzS2000-22V200039915.71 2148.43 77230.39 82732.56 T5
OPzS2500-22V250048719.17 2128.35 76930.28 82432.44 T5
OPzS3000-22V300057622.68 2128.35 77030.31 82532.48 T5
OPzS360-66V36034313.50 1807.09 42716.81 44717.60 T5
  • Voltage: 2V

  • Capacity range:(C10)100Ah-3000Ah(25℃)

  • Low maintenance: replenishment is 3 years

  • Designed floating life: 20 years(25 C)

  • Suitable for deep/shallow cycle applications

  • Cycle life: (25 ℃):

  • 20% DOD: 8000 cycles

  • 50% DOD: 3000 cycles

  • 80% DOD: 2000 cycles

  • Operation temperature range: -40~65 C

  • telecommunications

  • UPS&EPS systems

  • Solar power/wind power systems
