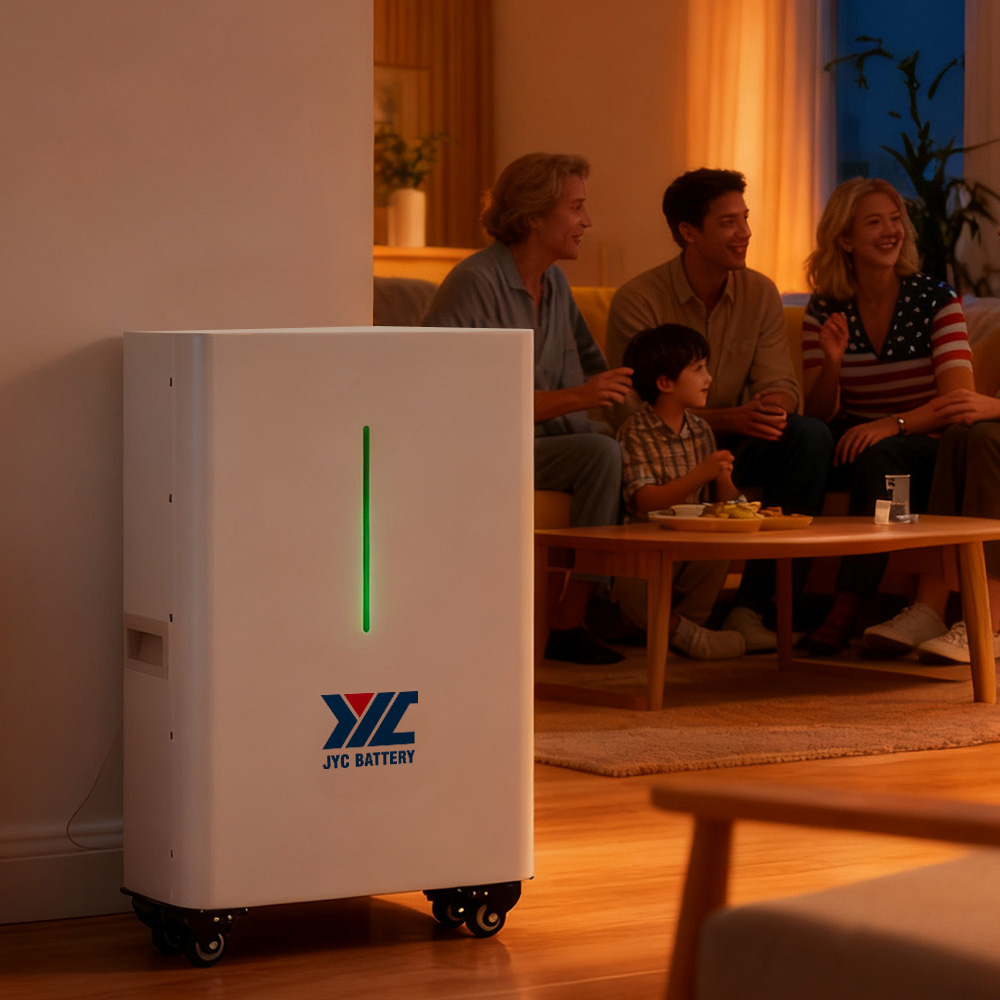

Household ESS

Household Energy Storage System (commonly referred to as Household ESS) is a recyclable charge-discharge energy storage device designed specifically for residential scenarios. Its core function is to enable the storage, management, and optimized utilization of electrical energy.

Send Inquiry

Wall Mounted  or Wheel-Type

51.2V100Ah
(5kwh)
51.2V200Ah
(10kwh)
51.2V300Ah
(15kwh)
51.2V51.2V51.2V
5120Wh10240Wh15360Wh
40-58.4V40-58.4V40-58.4V
100A200A300A
100A200A300A
430*200*620mm430*230*750mm420*300*750mm
CAN IRS232/RS485
(WifiBlue-tooth Optional)
CAN IRS232/RS485
(WifiBlue-tooth Optional)
CAN IRS232/RS485
(WifiBlue-tooth Optional)
IP20IP20IP20
0°C-60°C0°C-60°C0°C-60°C
-20°C-60°C-20°C-60°C-20°C-60°C
6000cycles @0.5C 25℃ 80%DOD6000cycles @0.5C 25℃ 80%DOD6000cycles @0.5C 25℃ 80%DOD
Natural CoolingNatural CoolingNatural Cooling
LCD(Optional)LCD(Optional)LCD(Optional)


Rack Mounted

 MODEL51.2V100Ah
(5kwh)
51.2V200Ah
(10kwh)
51.2V300Ah
(15kwh)
Nominal Voltage51.2V51.2V51.2V
Rated Capacity5120Wh10240Wh15360Wh
Operating Voltage40-58.4V40-58.4V40-58.4V
Max.Continuous Charge Current100A200A300A
Max.Continuous Discharge Current100A200A300A
Dimentions442mm*450mm*155mm442mm*630mm*222mm442mm*520mm*339mm
Communication ModeCAN IRS232/RS485
(WifiBlue-tooth Optional)
CAN IRS232/RS485
(WifiBlue-tooth Optional)
CAN IRS232/RS485
(WifiBlue-tooth Optional)
Proof LevelIP20IP20IP20
Charge Temperature0°C-60°C0°C-60°C0°C-60°C
Discharge Temperature-20°C-60°C-20°C-60°C-20°C-60°C
Cycle Life6000cycles @0.5C 25℃ 80%DOD6000cycles @0.5C 25℃ 80%DOD6000cycles @0.5C 25℃ 80%DOD
Cooling methodNatural CoolingNatural CoolingNatural Cooling
DisplayLCD(Optional)LCD(Optional)LCD(Optional)


  • Moderate Capacity and Power Matching Residential Needs

  • Dual-Mode Operation for Backup and Daily Use

  • High Safety with Multi-Layer Protection

  • Easy Installation and User-Friendly Operation

  • Strong Compatibility with Household Scenarios

  • Cost-Effective with Long-Term Savings

  • Economic Efficiency & Energy Savings

  • Safety & Reliability

  • Environmental Friendliness & Low Carbon:
