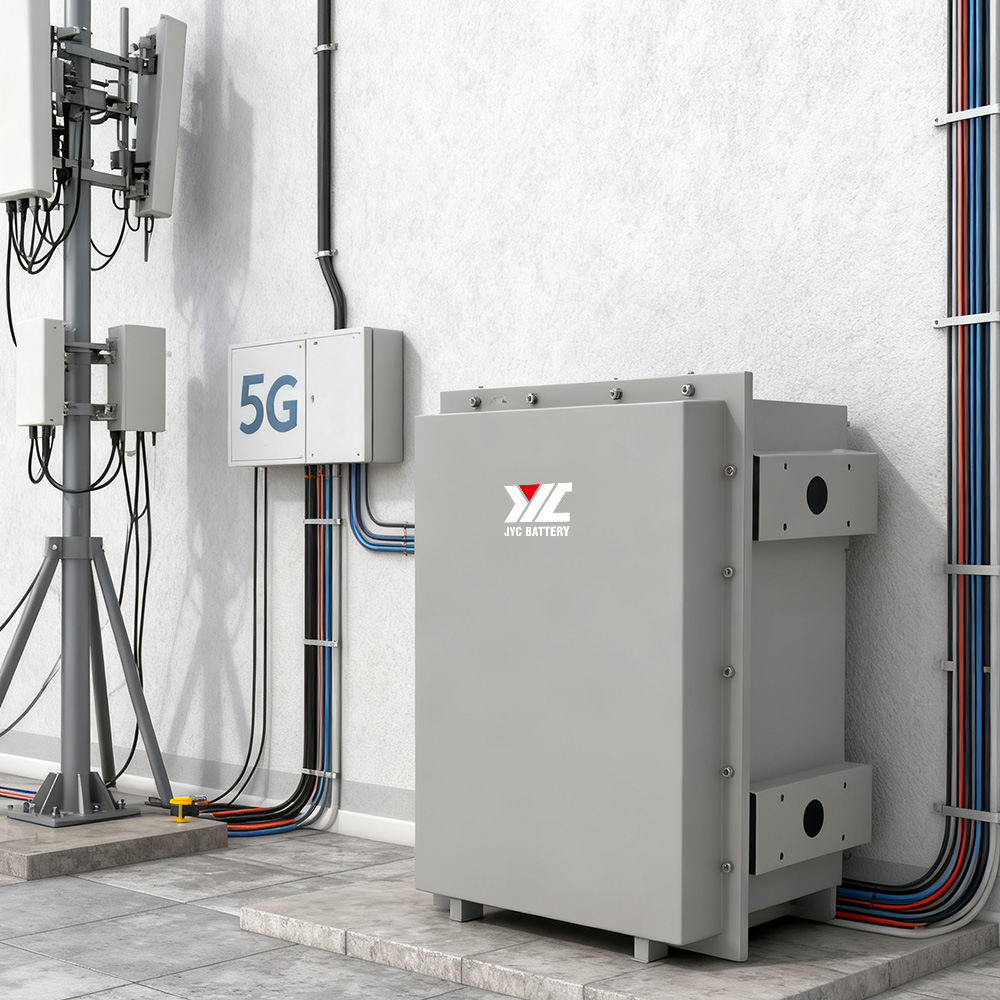

5G Integrated Battery

The 5G integrated battery is an integrated energy storage and power supply device specially designed for 5G communication scenarios. Its core feature is the high integration of lithium battery energy storage units, charge-discharge control modules, and protective structures. It can directly meet the power supply needs of devices such as 5G base stations and micro base stations without the need for additional complex peripheral equipment, and serves as a key energy storage component to ensure the stable operation of 5G communication networks.

Send Inquiry


MODEL51.2V50Ah
Nominal Voltage51.2V
Rated Capacity50Ah@0.5C
Max.Charge Current50A(1C)
End Charging Voltage58.4V
Rated Discharging Current25A(0.5C)
Max.Discharge Current50A(1C)
End Discharging Voltage43.2V
Operating Environment Temperature-20~60℃
Storage Temperature-20~45℃(in1month)
15~35℃(in 6months)
Design Life≥10 years
CommunicationRS485,CAN
Cycle Life6000 cycles @0.5C 25℃ 80%DOD
Dimensions(W*D*H)440mm*340mm*150mm(Customizable)
Weight28kg
Proof LevelIP65
  • Integrated Design

  • Voltage and Capacity Compatibility

  • Intelligent Management Capability

  • High Reliability and Environmental Adaptability

  • Adaptation to 5G High-Power Consumption Needs

  • Simplified Deployment and Operation & Maintenance

  • Compatibility with Future Expansion
